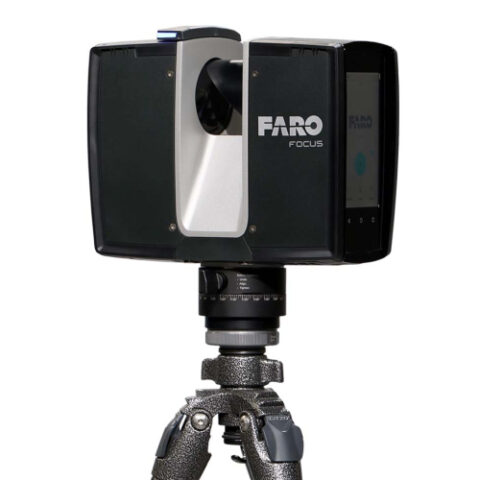

FARO Focus Core
FARO Focus Core enables fast colorized 3D scans and delivers a cost-competitive solution for construction, operations and public safety professionals eager to strike the optimal balance between scanning accuracy and speed, reducing time spent on site or on scene, while eliminating materials waste and personnel bottlenecks.
FARO Focus Core enables fast colorized 3D scans and delivers a cost-competitive solution for construction, operations and public safety professionals eager to strike the optimal balance between scanning accuracy and speed, reducing time spent on site or on scene, while eliminating materials waste and personnel bottlenecks.
Through an optional subscription to the FARO Stream mobile app for smart devices, Core users will benefit from real-time on-site pre-registration, which will allow faster project completion and a reduced need to return to a jobsite multiple times to capture additional scans.
Focus Core is also compatible with Sphere, the company’s cloud-based SaaS platform, which will enable enhanced collaboration of global teams, fast delivery of as-built data, and the ability to make better informed decisions in less time.
Features
Optimized scanning range
- 70-meter range with a distance accuracy of 2mm
Fast colour capture
- 1-minute internal SDR per scan, or y 2.5 min internal HDR per scan y Even faster colour capture with the optional panoramic camera add-on
Colour resolution ideal for fast on-scene reality capture
- 165 megapixels
Pre-registration with Stream (optional)
- Upload on-site pre-registered scan data via the Stream Mobile App
- Share information with project stakeholders anywhere in the world via FARO Sphere
Faster loading and system response
- Greater data management efficiency
- New high-performance electronics provide a smooth user experience and fluent on-site operation
Smartphone-enabled
- Remote control capabilities with the optional Stream support
- Fast Wi-Fi operation
Benefits
Multiple application use
- Construction, Public Safety and Operations offering data quality at faster scan speeds
- Ideal for public safety agencies looking to improve on scene evidence capture quality and efficiency
Reduce Rework and Material Waste
- Know the as-built condition of your project and ensure your designs fit the first time
- Monitor construction progress regularly and frequently in 3D helps you identify issues before they become costly and delay your schedule
Eliminate error-prone traditional measurement methods
- The Focus Core allows the ability to complete on-scene (forensic investigation tasks) and on-site (jobsite) data collection, faster, and to do so with greater accuracy, confident that the data is captured correctly, and not requiring multiple site/scene visit
Confidence to leave the site with complete and useful data
- Make data accessible to project stakeholders early on with Stream option and the FARO Sphere cloud platform
- Two-year manufacturer warranty means maximizing the life of this product with servicing while reducing the total cost of ownership throughout the device’s lifespan
Specifications :
Range
White, 90% Reflectivity 0.5 – 70 m
Dark-grey, 10% Reflectivity 0.5 – 70 m
Black, 2% Reflectivity 0.5 – 50 m
Range Noise1,2
White, 90% Reflectivity 0.4 mm @ 10 m, 0.5 mm @ 25 m
Dark-grey, 10% Reflectivity 1.0 mm @ 10 m, 1.5 mm @ 25 m
Black, 2% Reflectivity 3.0 mm @ 10 m, 5.0 mm @ 25 m
Max Speed Up to 0.5 MPts/sec
3D Accuracy3 3 mm @10m, 4 mm @25m
Ranging Error4 ±2 mm
Angular Accuracy5 19 arcsec
LaserHDR Yes
Temperature Range6 Operating: 5° – 40° C | Extended Operating: -10° – 55° C | Storage: -10°- 60°C
Additional Performance Specifications
Color Unit
Color Resolution Up to 165 MPx color
Raw Color
Resolution 527 MPx
HDR Camera 8 MPx – 2x, 3x, 5x brackets
Parallax Minimized due to co-axial design
Deflection Unit
Field of View 300° vertical8
/ 360° horizontal
Step Size
0.009° (40,960 Pts on 360°) vertical /
0.009° (40,960 Pts
on 360°) horizontal
Max. Scan Speed 97 Hz (vertical)
Laser (Optical Transmitter)
Laser Class Laser Class 1
Wavelength 1553.5 nm
Beam Divergence 0.3 mrad (1/e)
Beam Diameter
at Exit 2.12 mm (1/e)
Data Handling and Control
Data Storage
SATA 3.0 SSD 128 GB
and SDXC™ V30 64 GB SD Card; SD3.0,
UHS-I / SDXC™ / SDHC™, max. 512 GB
Scanner Control
Via touch screen display and WLAN
connection, Control by FARO Stream
(optional) App (iOS & Android) or
mobile devices with HTML5
Interface Connection
WLAN
IEEE 802.11 ac/a/b/g/n 2×2 MIMO,
as access point or client in existing
networks (2.4 and 5 GHz)
USB USB 3 port
Additional Features
Dual Axis Compensator Performs a leveling of each scan with an accuracy of 19 arcsec
valid within ±2°
Height Sensor Via an electronic barometer, the height relative to a fixed point
can be detected and added to a scan
Compass9 The electronic compass gives the scan an orientation
GNSS Integrated GPS & GLONASS
Accessory Bay The accessory bay connects versatile accessories
to the scanner
Inverse Mounting Yes
Real-time, On-site Registration Stream App (optional) real-time scan streaming, registration,
overview map and Sphere cloud upload
Digital Hash Function Scans are cryptographically hashed and signed by the scanner
Rescanning of Distant Targets Defined areas recaptured in higher resolution at a greater
distance
Retake Photos Select individual photographs with unwanted objects and
retake them
General Specifications
Power Supply 19 V (external supply), 14.4 V (internal battery)
Typical Power Consumption 19 W idle, 32 W scanning, 72 W charging
Typical Battery Operation Time About 4 hours
Typical Scan Time7 About 1 min
Ingress Protection (IP) Rating Class 54
Humidity Non-condensing
Weight 4.4 kg (including battery)
Size/Dimensions 230 x 183 x 103 mm
Calibration Recommended annually
Manufacturer Warranty 2 years
