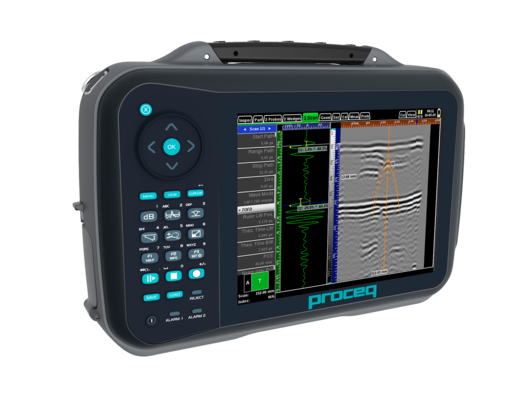

Proceq FD100 PA 16:64

Proceq FD100 PA 16:64 Metal and composite flaw detection using ultrasound Compatible with any 64-element linear phased array probe Simple 30 second configuration C-scans can be displayed in amplitude or depth

Proceq FD100 PA 16:64 Flexible high-tech ultrasonic inspection offering an extremely comprehensive measurement solution.

Compatibility
Proceq offers the possibility to order customized accessories such as probes, wedges and calibration blocks so that our solution is tailor-made to your need.

Ease of use
Plug-and-play compatibility with a wheel probe for fast and efficient corrosion mapping or large composites inspection.

Productivity
C-scans can be displayed in amplitude or depth. With merged C-scans, data is displayed for all inspection passes in the same view.

Software / Workspace App

Tech Specs

Display

TFT 8.4″

---

File Size

Up to 3 GB

---

Report Generation

Customisable pdf report, PNG screen capture, CSV file output option

---

Encoder

1 or 2 axis (quadrature input)

---

Languages

English, German, French, Spanish, Russian, Chinese, Hungarian, Italian, Portuguese, and Japanese

Sensor / Instrument

Tech Specs

Configuration

2 UT & 1 l-PEX Channels

---

Transducer Socket

Lemo1 – BCD
I-PEX

---

Pulse Voltage

25 to 75 V (in 5 V steps)

---

PRF

1 to 5000 Hz

---

Gain Range

PA: 76 dB (0.1 dB steps)

---

Bandwidth

PA: 200 KHz to 14 MHz
UT 200 KHz to 22 MHz

---

Display

TFT 8.4″

---

Signal Enhancement

Digital filters, smoothing, contouring, rejection, averaging

---

Architecture

16 active, multiplexed over 64 channels

---

Digitizing Frequency

65 MHz

---

Focal Laws

128

---

Maximum A Scan Length

4096

---

Supported Scans

A, B, C, L, S-Scan, Merged, true Top & End

---

Number of Scans

1 (with up to 3 extracted A scans)

---

Number of Layouts

35

---

Measurements

Path length, depth, surface distance, DAC, AWS, DGS, TGS

---

File Size

Up to 3 GB

---

Report Generation

Customisable pdf report, PNG screen capture, CSV file output option

---

Encoder

1 or 2 axis (quadrature input)

---

Languages

English, German, French, Spanish, Russian, Chinese, Hungarian, Italian, Portuguese, and Japanese

---

Battery Life

6 Hrs

---

IP rating

IP66
